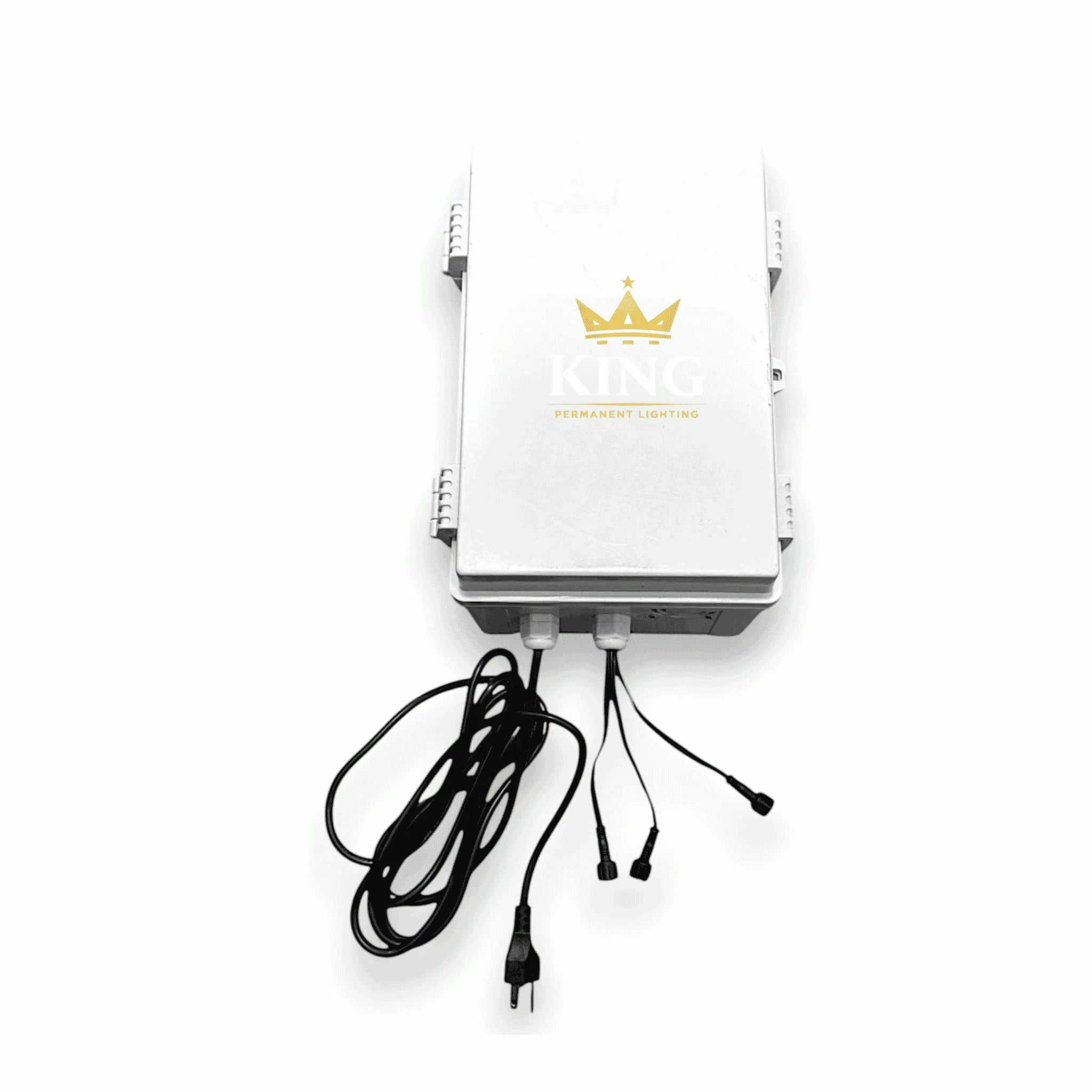

King Permanent Lighting 36V Controller with 600W Power Supply
Regular price
$522.99
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Built for installers. Used on real jobs.
This is the gear working contractors run on real rooflines. C9 and C7 LED bulbs, socket wire, clips, plugs, and complete pro light kits at contractor wholesale pricing. Most orders ship same day if placed before 2 PM ET. Free shipping over $349.
The 4-sentence answer
King 36V Controller (600W) is a 600W Bluetooth + Wi-Fi RGBWW controller for King Permanent Lighting 36V systems. The brain of the King 36V install — runs color cycles, scheduling, and effect programming via the King mobile app. Compatible with King Permanent Lighting 36V Systems. Use only with the King Permanent Lighting ecosystem — proprietary connectors and controller communication mean cross-brand mixing is not supported.
Why the King 36V Controller (600W) earns its place on the install
Meet the heart of the 36V system. The King Permanent Lighting 36V Controller is engineered for long, clean, high-performance permanent lighting installations — delivering up to 200 feet per port before power injection is needed, dramatically reducing injection points and cutting install time on large-scale projects.
Includes everything you need to get your 36V system up and running: a 600W 36V power supply, standard outlet cable, and three lighting output ports — all in one complete package.
⚠️ Important Compatibility Notice If you are ordering a replacement or add-on for a 36V system purchased before August 2025, please contact us before placing your order. The 36V system has been updated, and we need to confirm whether you have the previous or current version to ensure full compatibility.
Built for Long, Efficient Runs
- 3 Output Ports – Power multiple runs from a single controller
- Up to 200 ft Per Port – Extend further before power injection is required
- Dedicated Plug-and-Play Power Injection Port – Simplified power management on extended runs
- 600W 36V Power Supply Included – Everything you need right out of the box
Fewer injection points. Faster installs. Bigger jobs done better.
Key Features
- Music Sync – Dynamic lighting that responds in real time to audio
- Timer Settings – Automate on/off scheduling for effortless homeowner operation
- User-Friendly Interface – Intuitive controls designed for both installer setup and homeowner daily use
- Plug-and-Play Design – Streamlined installation from controller to first light
Designed for installer efficiency and homeowner simplicity — from the first install to every day after.
Technical Specifications
| Spec | Detail |
|---|---|
| Voltage | 36V |
| Power Supply | 600W Included |
| Output Ports | 3 |
| Max Run Per Port | Up to 200 ft before injection |
| Control | Bluetooth & Wi-Fi App |
| Color Type | RGBWW |
| Compatibility | King Permanent Lighting 36V System |
Verified specifications
Every value below is pulled from the printed bag label / spec sheet. No marketing inflation.
| Voltage | 36V DC |
|---|---|
| Power capacity | 600W per controller |
| Output ports | 3 |
| Max run per port | Up to 200 ft before power injection |
| Control method | Bluetooth + Wi-Fi via King mobile app |
| Color type | RGBWW (RGB + Warm White + Cool White) |
| Compatibility | King 36V System |
Where this part fits in the system
Residential RGB permanent install
The standard 36V controller for residential King Permanent installs. Bluetooth pairing for local control + Wi-Fi for remote scheduling and effects.
Multi-port commercial properties
3 output ports let one controller drive separate eave sections (front + side + back) on the same Wi-Fi network with synchronized color cycles.
Long-run installs needing power injection
Each port supports up to 200 ft before needing power injection. For runs longer than 200 ft per port, inject power via the 250-ft low-voltage wire + 3-wire connectors.
What this part works with
- Voltage system
- King Permanent Lighting 36V Systems
- Controller
- King Permanent Lighting controller (24V or 36V matching variant)
- Mounting
- Inside the King Permanent rated outdoor enclosure box for code-compliant install. Power supply units must be enclosure-mounted.
- Will NOT work with
- Non-King-Permanent LED strings, controllers, or accessories. The system uses proprietary connectors and controller protocol — cross-brand mixing is not supported.
King 36V Controller (600W) vs the King 24V 300W PSU baseline
| Spec | King 36V Controller (600W) | King 24V 300W PSU (baseline) |
|---|---|---|
| Voltage | King Permanent Lighting 36V Systems | 24V DC |
| Function | a 600W Bluetooth + Wi-Fi RGBWW controlle | Outdoor 24V 300W power supply |
| Best for | The brain of the King 36V install — runs color cycles, sched | Primary 24V system power |
How to install King 36V Controller (600W)
- Plan the system layout. King Permanent Lighting installs follow a layout-first pattern. Sketch the eave line, PSU location, controller location, and accessory placement before any wire pulls.
- Mount in the rated enclosure. PSU and controller units mount inside the King Permanent outdoor enclosure box for code-compliant install. GFCI outlet required for the supply.
- Route low-voltage wire through protective loom. Use the King Permanent protective loom along the run. Bury or tuck behind soffit where the wire isn't architecturally visible.
- Connect with King proprietary connectors. Don't splice with generic wire nuts. Use the King 3-wire connectors at every junction.
- Commission via the King controller app. Pair the controller via Bluetooth + Wi-Fi. Run a full color cycle to confirm every LED is firing before final mount.
Build quality + materials
- Outdoor-rated construction — designed for year-round outdoor exposure when mounted in the rated King Permanent enclosure box.
- Proprietary connector system — gas-tight connections that survive freeze-thaw and humidity exposure for the life of the install.
- Multi-year permanent install rated — unlike seasonal Christmas lighting, the King Permanent system is designed to stay on the eave year-round.
Warranty
1-year manufacturer warranty on King Permanent Lighting components from Christmas Lights HQ. Not covered: install outside the rated King Permanent enclosure box, cross-brand mixing with non-King components, damage from over-voltage or over-current beyond the rated spec, animal damage.
