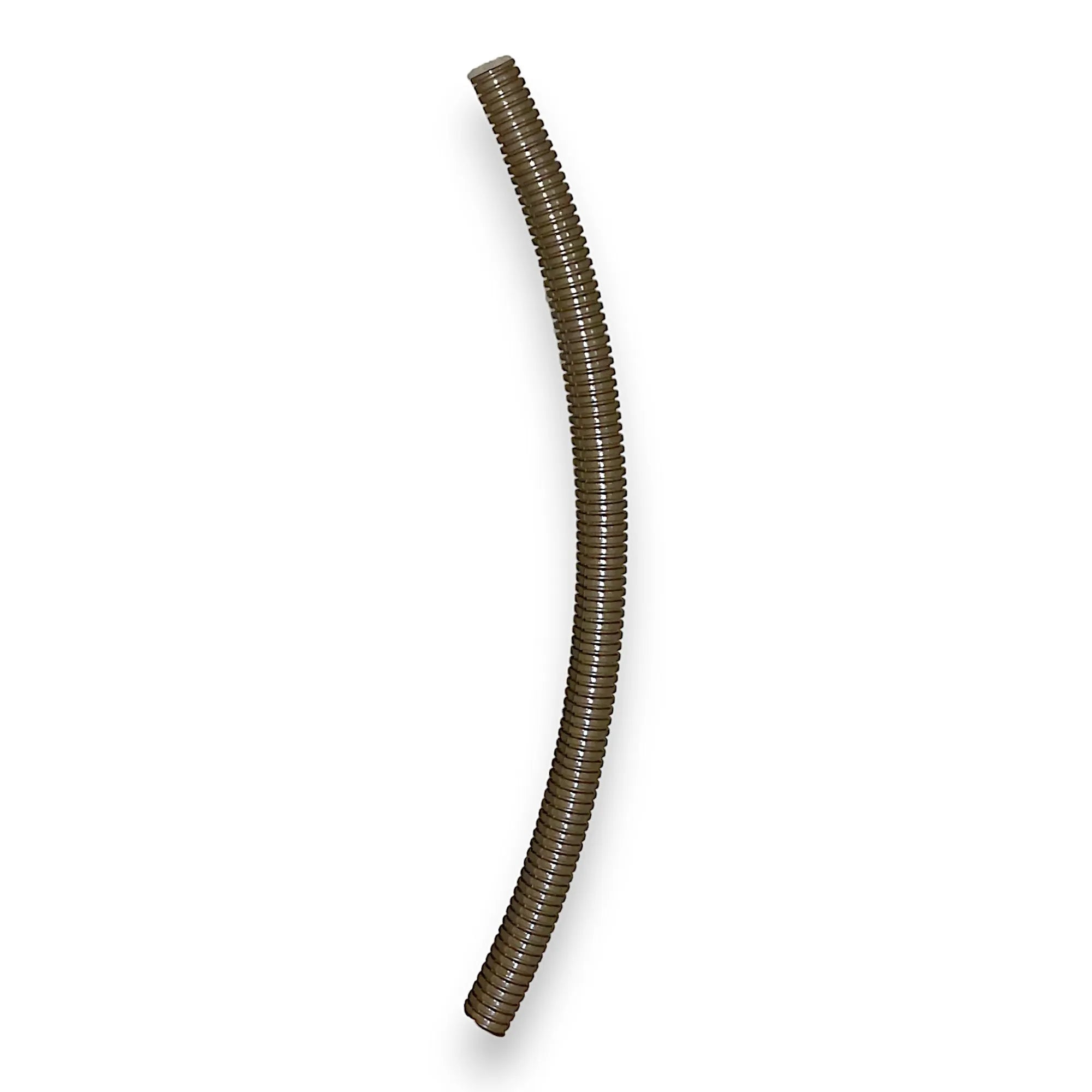

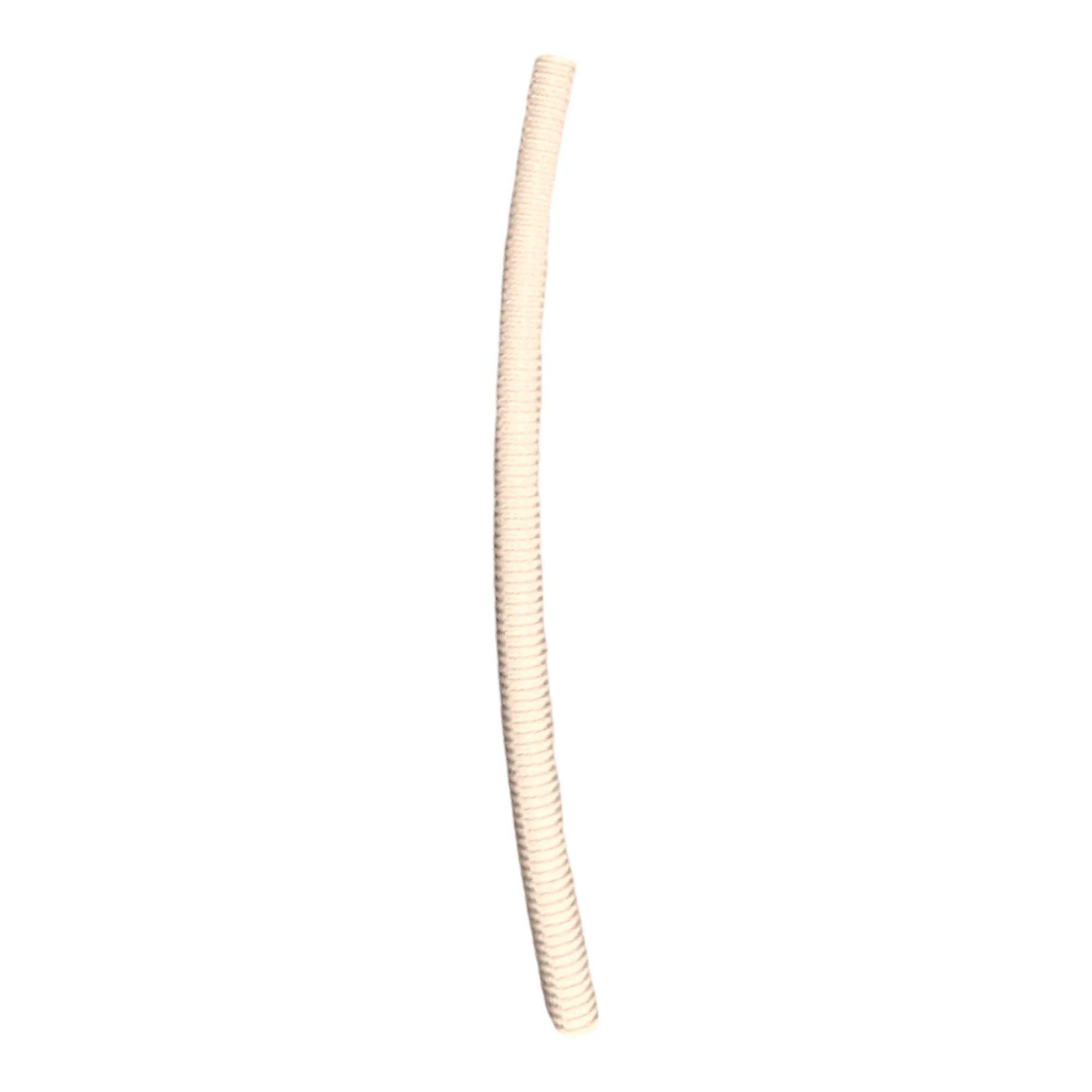

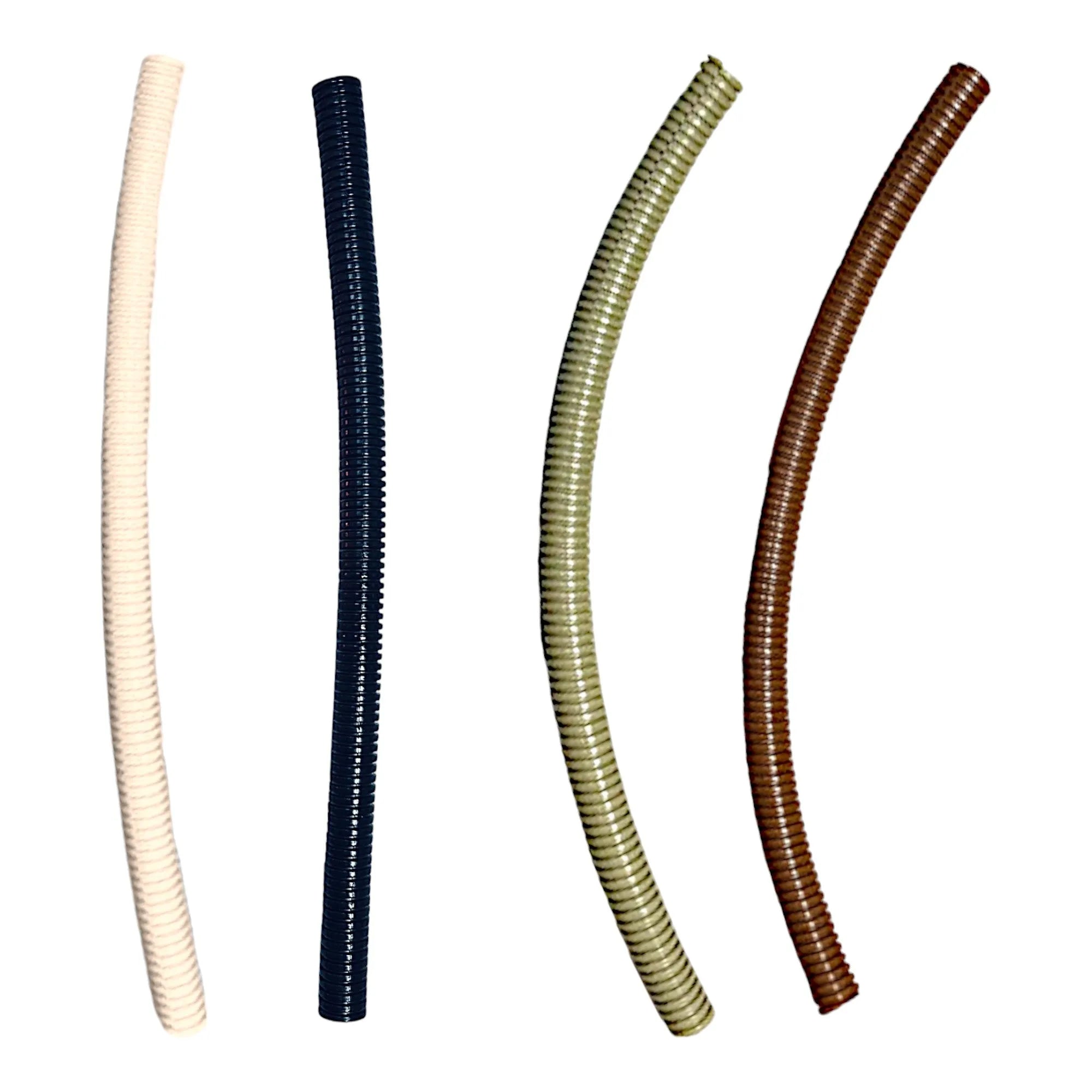

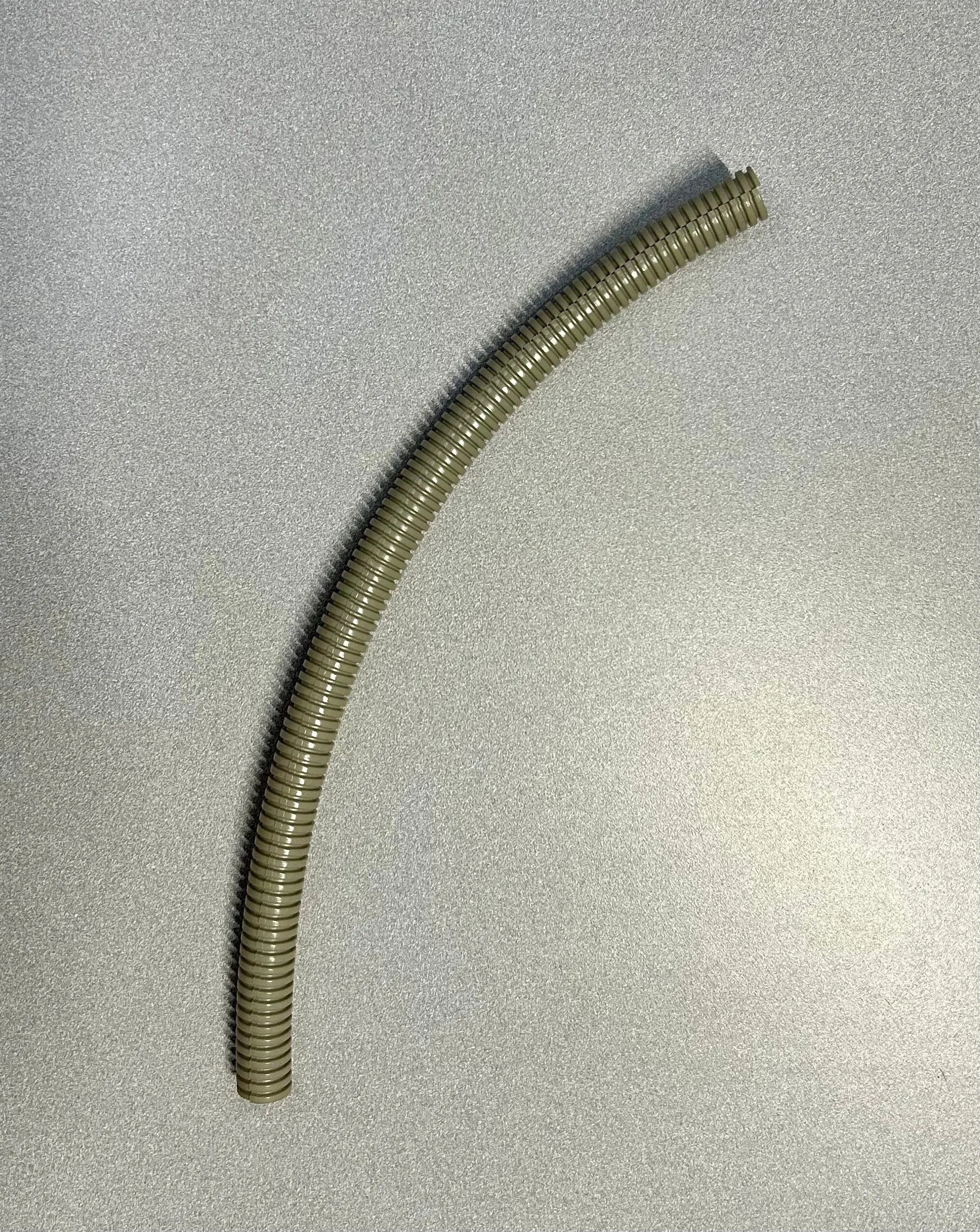

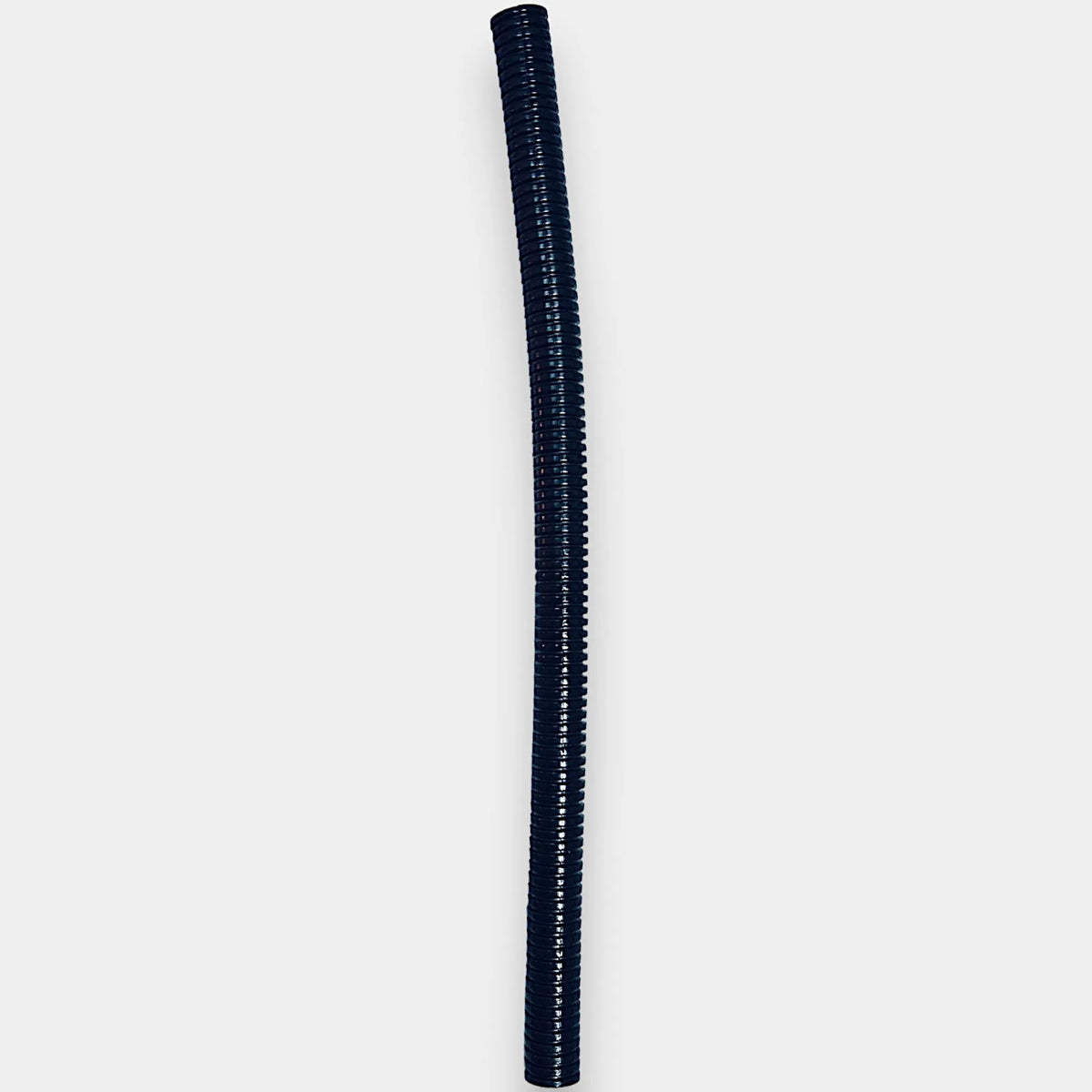

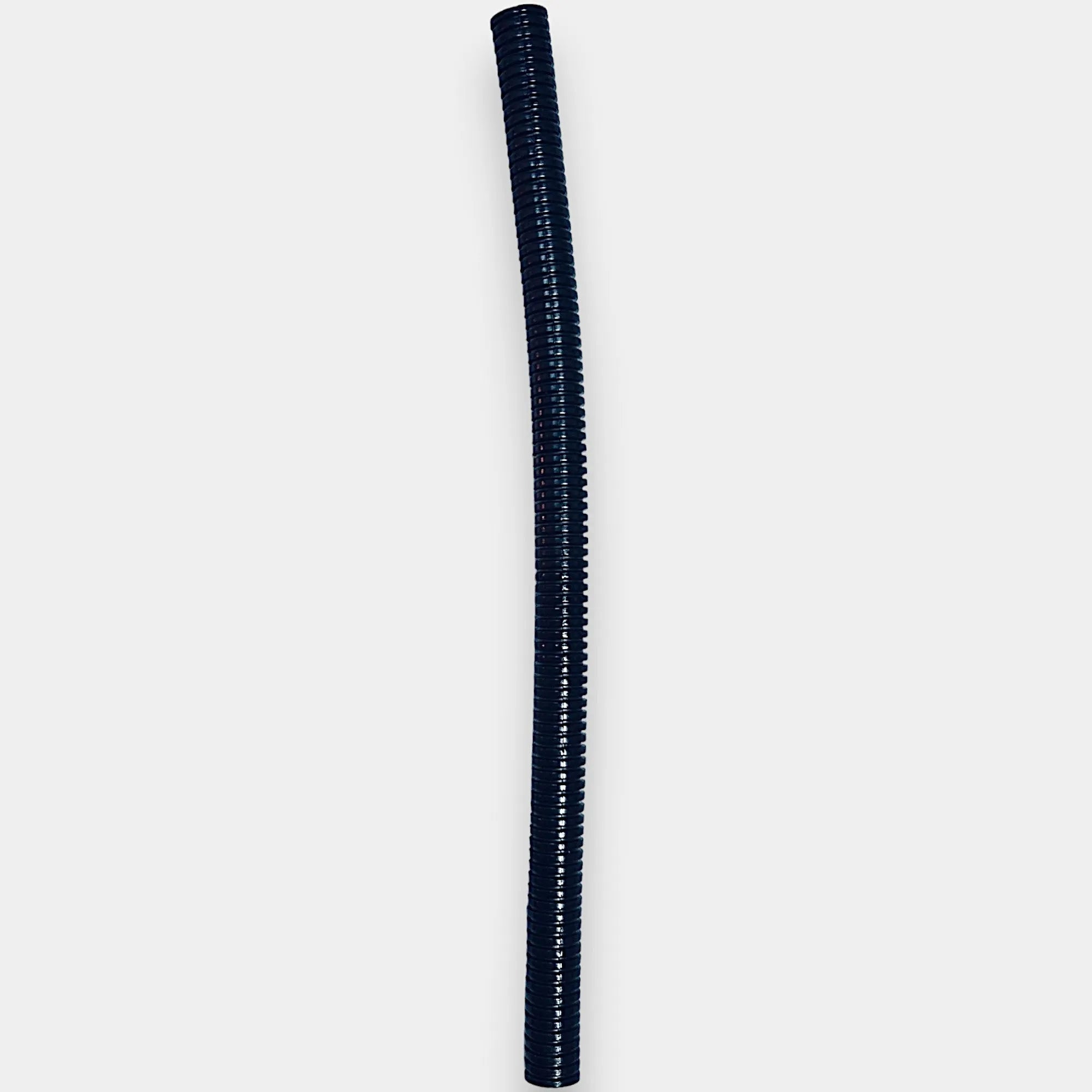

King Permanent Lighting 1' Connection Loom Section
Regular price
$1.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Built for installers. Used on real jobs.
This is the gear working contractors run on real rooflines. C9 and C7 LED bulbs, socket wire, clips, plugs, and complete pro light kits at contractor wholesale pricing. Most orders ship same day if placed before 2 PM ET. Free shipping over $349.
The 4-sentence answer
King 1' Connection Loom Section is a 1-ft sealed loom section that covers the connection point between two King Permanent components. Use at every King 3-wire connector splice or proprietary plug connection to seal the junction against moisture and UV. Compatible with King Permanent Lighting 24V & 36V Systems. Use only with the King Permanent Lighting ecosystem — proprietary connectors and controller communication mean cross-brand mixing is not supported.
Why the King 1' Connection Loom Section earns its place on the install
Don't leave your connection points exposed. The King Permanent Lighting 1' Connection Loom Section is specifically designed to slide over extension cable plug connections — ensuring every joint along your exterior run is fully covered, continuously protected, and professionally finished.
It's the final piece that completes a proper loom installation from end to end.
⚠️ On any exterior installation, connection points must be protected. An exposed plug joint in an otherwise fully loomed run defeats the purpose of the loom entirely.
- Covering and protecting extension cable plug connections
- Completing loom runs cleanly without exposed gaps at joints
- Maintaining full, continuous wire protection on all outdoor installations
- Slides easily over plug connection points
- Ensures no exposed gaps along loomed exterior runs
- Keeps the finished install looking clean and consistent
- UL 94-V0 Fire Rated for safety and compliance
| Spec | Detail |
|---|---|
| Length | 1 Foot |
| Purpose | Connection point loom coverage |
| Fire Rating | UL 94-V0 |
| Required For | All exterior loomed extension runs |
| Compatibility | All King Permanent Lighting Systems |
Verified specifications
Every value below is pulled from the printed bag label / spec sheet. No marketing inflation.
| Length | 1 ft |
|---|---|
| Material | UV-stabilized sealed polymer |
| Application | Connection point sealing (3-wire splices, plug junctions) |
| Variant options | See variant options |
| Compatibility | King 24V and 36V |
Where this part fits in the system
Seal every King 3-wire splice
After making a 3-wire connector splice on the 250-ft low-voltage wire, slip a 1-ft loom section over the connector body to seal against moisture entry.
Cover plug-and-play junctions
At plug-and-play extension cable junctions, the loom section provides additional sealing on top of the factory connector seal — extends junction life in harsh outdoor exposure.
Architectural cleanup
Where junctions are visible architecturally (under eave, near gutter line), the loom hides the connector body for a cleaner finished look.
What this part works with
- Voltage system
- King Permanent Lighting 24V & 36V Systems
- Controller
- King Permanent Lighting controller (24V or 36V matching variant)
- Mounting
- Inside the King Permanent rated outdoor enclosure box for code-compliant install. Power supply units must be enclosure-mounted.
- Will NOT work with
- Non-King-Permanent LED strings, controllers, or accessories. The system uses proprietary connectors and controller protocol — cross-brand mixing is not supported.
King 1' Connection Loom Section vs the King 24V 300W PSU baseline
| Spec | King 1' Connection Loom Section | King 24V 300W PSU (baseline) |
|---|---|---|
| Voltage | King Permanent Lighting 24V & 36V Systems | 24V DC |
| Function | a 1-ft sealed loom section that covers t | Outdoor 24V 300W power supply |
| Best for | Use at every King 3-wire connector splice or proprietary plu | Primary 24V system power |
How to install King 1' Connection Loom Section
- Plan the system layout. King Permanent Lighting installs follow a layout-first pattern. Sketch the eave line, PSU location, controller location, and accessory placement before any wire pulls.
- Mount in the rated enclosure. PSU and controller units mount inside the King Permanent outdoor enclosure box for code-compliant install. GFCI outlet required for the supply.
- Route low-voltage wire through protective loom. Use the King Permanent protective loom along the run. Bury or tuck behind soffit where the wire isn't architecturally visible.
- Connect with King proprietary connectors. Don't splice with generic wire nuts. Use the King 3-wire connectors at every junction.
- Commission via the King controller app. Pair the controller via Bluetooth + Wi-Fi. Run a full color cycle to confirm every LED is firing before final mount.
Build quality + materials
- Outdoor-rated construction — designed for year-round outdoor exposure when mounted in the rated King Permanent enclosure box.
- Proprietary connector system — gas-tight connections that survive freeze-thaw and humidity exposure for the life of the install.
- Multi-year permanent install rated — unlike seasonal Christmas lighting, the King Permanent system is designed to stay on the eave year-round.
Warranty
1-year manufacturer warranty on King Permanent Lighting components from Christmas Lights HQ. Not covered: install outside the rated King Permanent enclosure box, cross-brand mixing with non-King components, damage from over-voltage or over-current beyond the rated spec, animal damage.
Questions contractors actually ask
The Problem It Solves
When running protective loom along exterior extension cables, standard loom sections naturally stop at connection points — leaving plug joints exposed to moisture, UV, and environmental wear. This 1' section bridges that gap, maintaining uninterrupted protection across the entire run.
